What Is the TDP of the Core i7-12700T CPU?

Find out the TDP of Intel's 12th generation Core i7 12700T processors.

Motherboard Timur Garifov / Unsplash

Last Updated: January 11, 2022

Written by Kevin Jones

This article will discuss the TDP of the 12700T. Additionally, we will provide recommendations for CPUs and compatible motherboards, CPU coolers, and memory.

What Is the TDP of the 12700T?

Section Link

Intel CPU specifications indicate this power dissipation number as "Processor Base Power" and "Maximum Turbo Power."

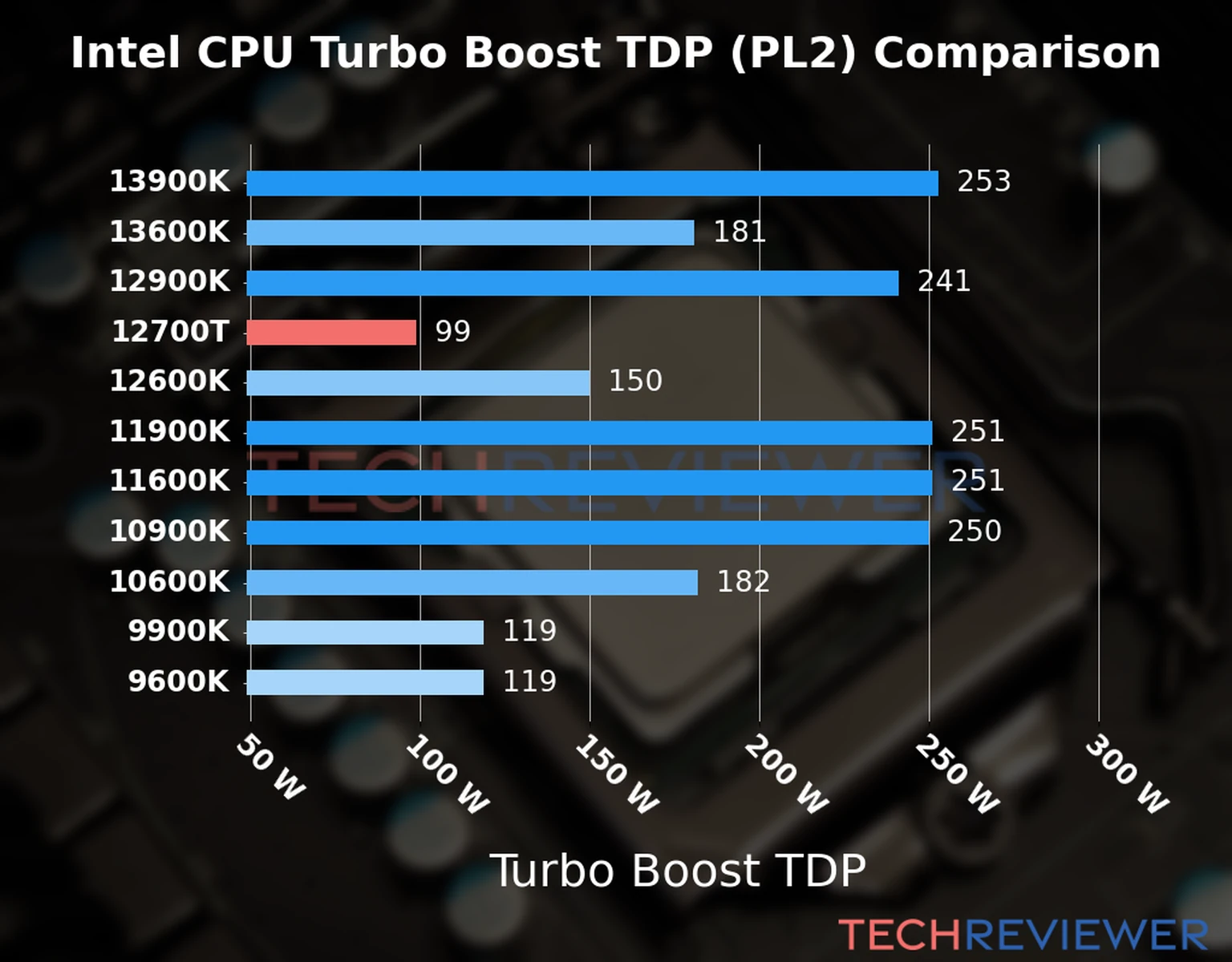

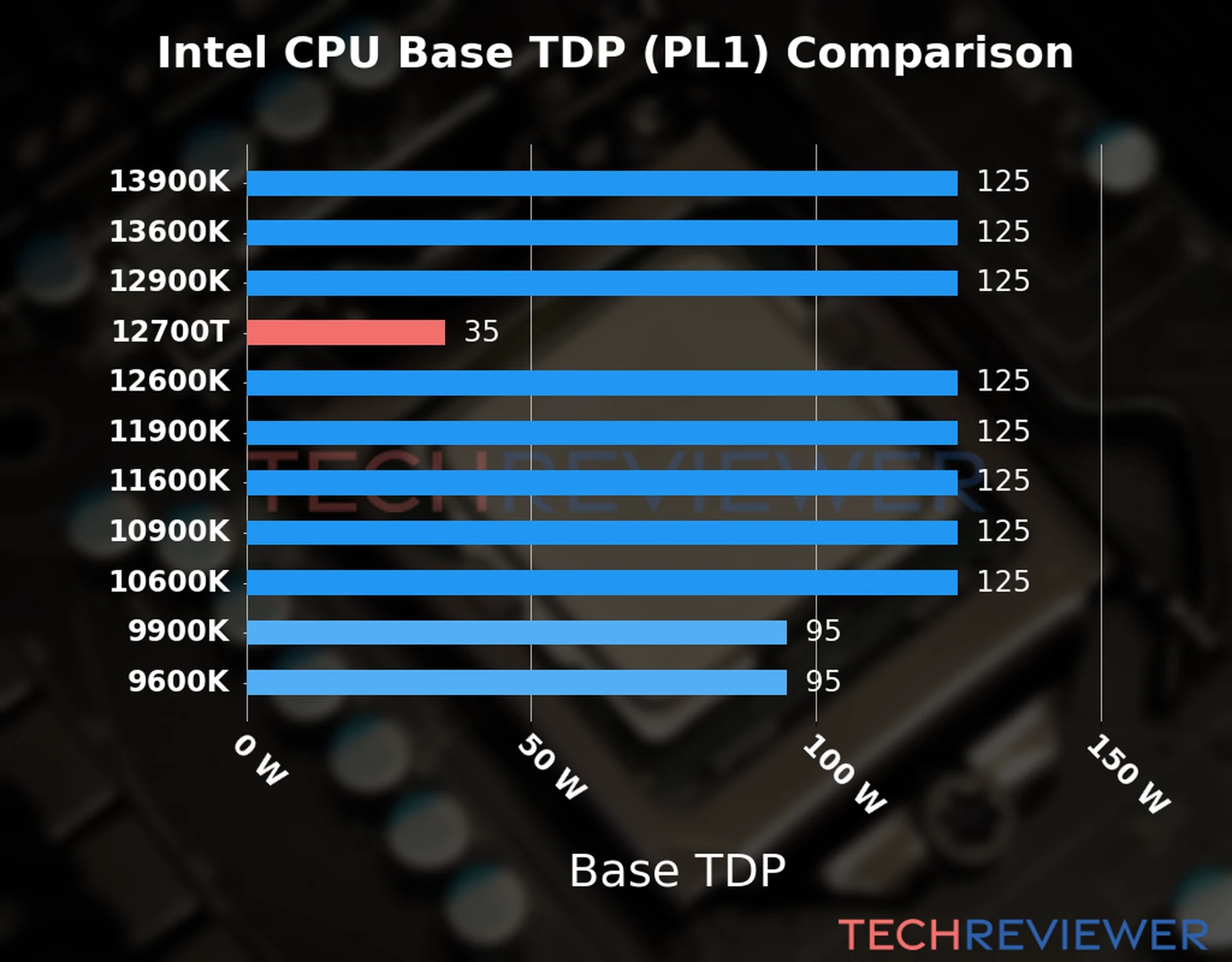

The Core i7-12700T has a base TDP of 35 watts and a max turbo TDP of 99 watts.

Check out our Recommended LGA 1700 Coolers below.

Check out our Recommended 12th Gen CPUs and Motherboards below.

CPU Cooling for the 12700T

Section Link

Thermal Dissipation

A CPU cooler's TDP (Thermal Design Power) rating indicates how much heat it can dissipate in watts. If the cooler can't keep your CPU cool enough, your CPU may throttle (slow down), and your cooler will constantly run at full speed.

Intel CPU specifications indicate this power dissipation number as "Processor Base Power" and "Maximum Turbo Power."

Depending on the workload, the Core i7-12700T has a TDP of 35–99 watts.

A CPU cooler can still work with a lower TDP rating than the TDP of a CPU. However, the CPU will eventually throttle itself to a lower frequency to allow itself to cool.

Without adequate cooling, the CPU may not be able to achieve or maintain maximum turbo speeds.

Types of Coolers

Air coolers use a combination of heatsinks and fans. They are the cheapest, but also the loudest.

A Closed-Loop Cooler (CLC), also called an All-in-One (AIO) cooler, is a type of liquid cooler. All-in-one liquid coolers provide a more straightforward setup in a single pre-built package.

Liquid cooling can provide even better TDP performance at lower noise levels but are more expensive and take up more room. The noise level and ability to cool your CPU will depend on the liquid cooling solution's radiator size and the number and size of the fans.

Find AIO Coolers on Amazon (affiliate link).

Open-Loop Coolers are also a type of liquid cooler, except you construct them yourself. They allow for more flexibility in building your perfect cooling solution but can also be more complicated to set up. Open-loop systems give you the flexibility to cool additional devices, such as your graphics card's GPU.

Thermaltake TOUGHAIR 510 Thermaltake TOUGHAIR 510 Check Price on Amazon Amazon Affiliate Link

Noise

More fans typically mean better cooling. However, they also mean more noise.

Larger fans are typically quieter than smaller fans, as they can move the same amount of air at lower speeds.

If a cooler is struggling to cool a CPU, it will run at its maximum speed, which will be louder.

Fan noise levels are measured a dB. Lower dB values are quieter.

You can often configure your motherboard's BIOS to use specific fan speeds at particular temperatures. This configurable fan speed allows you to have a near-silent computer while your computer is idle.

Mounting Brackets

CPU coolers can have various mounting brackets to work with different socket sizes. Make sure that your cooler comes with a compatible mounting bracket.

The easiest way to find a CPU cooler that will work for your computer is to search by socket type. For example, the 12700T uses an LGA 1700 socket, so you would search for an LGA 1700 CPU cooler. In some cases, such as when a new socket size is released, there may not be many compatible coolers. In these cases, you can often purchase a separate mounting/retention kit to work with the new dimensions.

Size

Before buying the biggest cooler possible, make sure that your case and motherboard configuration have room.

Also, ensure that other components on your motherboard won't interfere due to size constraints. For example, do your memory modules (DIMMs) have tall heat spreaders?

Dual-fan coolers often take up quite a bit of room. Liquid cooling solutions typically position fans at the top or bottom of the case.

Lighting

Some CPU cooler fans come with LED lighting. Similarly, liquid cooling pump heads can also come with LEDs or even LCDs!

If you want to turn off the lights when they get annoying, make sure your CPU cooler has that option.

Price

In general, air-based coolers will be lower cost than liquid cooling systems.

CPU coolers that support a higher TDP are also typically correlated with a higher price.

The more advanced lighting features tend to also come at an extra cost. You can decide between a practical, low-cost solution and a dazzling light show.

The distance between heatsink screw holes for the LGA 1700 increased to 78x78 mm from the 75x75 mm spacing typical of recent sockets. This new spacing means you'll need a new cooler/heatsink or upgrade kit that supports the new configuration.

Motherboard Requirements for LGA 1700 Processors

Section Link

For 12th Gen Intel Core processors, you'll need a motherboard with an LGA 1700 socket. You will need a motherboard with the Z690 chipset to support CPU overclocking. Otherwise, you can use a motherboard with Intel's other 600 series desktop chipsets (e.g., H670, B660, H610).

Motherboards with the Z690 chipset were the first ones available, while motherboards with the other chipsets are starting to be released in early 2022.

Intel 600 Series Desktop Chipsets
Z690H670B660H610
Release Date Q4 2021 Q1 2022 Q1 2022 Q1 2022
CPU Overclocking Yes No No No
PCIe 5.0 Slots via Processor One x16 or Two x8 One x16 or Two x8 One x16 One x16
PCIe 4.0 Slots via Processor One x4 One x4 One x4 None
PCIe 4.0 Lanes via Chipset Up to 12 Up to 12 Up to 6 None
PCIe 3.0 Lanes via Chipset Up to 16 Up to 12 Up to 8 8
Memory Overclocking Yes Yes Yes Yes
Memory Channels 2 2 2 1
DMI 4.0 Lanes 8 8 4 4
USB 3.2 Gen 2x2 (20 Gbps) Up to 4 Up to 2 Up to 2 None
USB 3.2 Gen 2x1 (10 Gbps) Up to 10 Up to 4 Up to 4 Up to 2
USB 3.2 Gen 1x1 (5 Gbps) Up to 10 Up to 8 Up to 6 Up to 4
USB 2.0 Ports 14 14 12 10
Wi-Fi 6E Yes Yes Yes Yes
SATA 3.0 Ports Up to 8 Up to 8 Up to 4 4
PCIe RAID 0,1,5 Support Yes Yes No No
Section Link

Locked Intel CPUs may come with a stock CPU cooler. These CPU models do not have a "K" in the name. While stock coolers will prevent your CPU from overheating, your CPU will throttle its performance during games and other intensive tasks. Higher TDP coolers will keep your CPU at turbo speeds for longer durations. Stock coolers are often quite loud at their maximum speed.

The LGA 1700 socket will require a CPU cooler that supports the new socket size. Some manufacturers are releasing upgrade kits for LGA 1200 heatsinks to support the new size.

Best AIO Liquid Cooler: Enermax Liqmax III 360

  • This Enermax liquid cooler has an excellent cooling capability with a 360-watt TDP (Thermal Design Power).
  • Supports a variety of CPU sockets, including Intel LGA 2066, 2011-3, 2011, 1700, 1200, 1366, 1156, 1155, 1151, 1150 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1.
  • Quiet operation at 14-27 dBA.
  • You can request an LGA 1700 mounting kit via the LGA 1700 Mounting Kit Request Form.
  • Make sure your computer case dimensions support this, as it will take up a decent amount of space! Enermax Liqmax III 360 Enermax Liqmax III 360 Check Price on Amazon Amazon Affiliate Link

Best Dual-Fan Air CPU Cooler: Thermaltake TOUGHAIR 510

  • This CPU cooler doesn't have any fancy LED lights, but the dual 120 mm fans do a great job of cooling LGA 1700 CPUs.
  • Suppose you think this cooler will take up too much space. In that case, Thermaltake has a few single-fan TOUGHAIR variants which use different orientations.
  • This CPU cooler has a 2000 RPM max speed for optimal cooling.
  • 180-watt TDP (Thermal Design Power). Thermaltake TOUGHAIR 510 Thermaltake TOUGHAIR 510 Check Price on Amazon Amazon Affiliate Link
Section Link

Best Intel High-Performance Enthusiast CPU: Intel Core i9-12900K

  • Up to 5.2 GHz: perfect for games, video editing, and high-intensity tasks.

  • 16 cores (8 Performance + 8 Efficiency): Quite a few cores considering the frequency! This combination makes it a great all-around system that can handle almost any task.

  • Virtualization features make it great for running virtual machines.

  • Check the latest price of the Intel Core i9-12900K on Amazon (affiliate link).

    Intel Core i9-12900K Processor 16 Cores (8P+8E) up to 5.2 GHz Intel Core i9-12900K Processor 16 Cores (8P+8E) up to 5.2 GHz Check Price on Amazon Amazon Affiliate Link
  • For the Intel Core i9-12900K CPU, you'll need a motherboard with the Z690 chipset to support CPU overclocking. Otherwise, you can use a motherboard with Intel's other 600 series desktop chipsets (e.g., H670, B660, H610).

  • Our recommended DDR4 motherboard to pair with the i9-12900K is Gigabyte's Z690 AORUS Elite AX DDR4: GIGABYTE Z690 AORUS Elite AX DDR4 GIGABYTE Z690 AORUS Elite AX DDR4 Check Price on Amazon Amazon Affiliate Link

    • PCIe 5.0 support
    • It supports up to 128GB of DDR4 memory!
    • 2.5 Gb Ethernet port is faster than most home Internet speeds with room to spare for file transfers.
    • Wi-Fi 6
    • Bluetooth 5.2 is great for streaming music to Bluetooth headphones.
    • Four x4 NVMe M.2 slots, which is fantastic! All four of these run at PCIe 4.0 speeds.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the GIGABYTE Z690 AORUS Elite AX DDR4 on Amazon (affiliate link).
  • Our recommended DDR5 motherboard to pair with the i9-12900K is Gigabyte's Z690 AORUS Master: GIGABYTE Z690 AORUS Master GIGABYTE Z690 AORUS Master Check Price on Amazon Amazon Affiliate Link

    • PCIe 5.0 support
    • It supports up to 128GB of DDR5 memory (DDR5 provides the fastest memory speeds)!

      DDR5 memory appears to be out of stock at most retailers, so I recommend sticking with a DDR4 motherboard or preparing for a long wait.

    • 10 Gbps Ethernet port is faster than any home Internet speed available with tons of room to spare for file transfers.
    • Wi-Fi 6E makes it easy to reach the fastest speeds and future-proof your Wi-Fi system.
    • Bluetooth 5.2 is great for streaming music to Bluetooth headphones.
    • Four x4 NVMe M.2 slots, which is fantastic! Three of these run at PCIe 4.0 speeds, and one at PCIe 3.0 speeds.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the GIGABYTE Z690 AORUS Master on Amazon (affiliate link).

Best Value CPU: Intel Core i5-12600K

  • Less than half the price of the i9-12900K, but still excellent performance at up to 4.9 GHz.

  • 10 cores (6 Performance + 4 Efficiency): This core count makes it suitable for everyday multi-threading tasks, such as having tons of browser windows open.

  • Virtualization features make it great for running virtual machines.

  • Check the latest price of the Intel Core i5-12600K on Amazon (affiliate link).

    Intel Core i5-12600K Intel Core i5-12600K Check Price on Amazon Amazon Affiliate Link
  • For the Intel Core i5-12600K CPU, you'll need a motherboard with the Z690 chipset to support CPU overclocking. Otherwise, you can use a motherboard with Intel's other 600 series desktop chipsets (e.g., H670, B660, H610).

  • Our recommended DDR4 motherboard to pair with the i5-12600K is GIGABYTE's Z690 Gaming X DDR4 motherboard: GIGABYTE Z690 Gaming X DDR4 GIGABYTE Z690 Gaming X DDR4 Check Price on Amazon Amazon Affiliate Link

    • PCIe 5.0 support
    • It supports up to 128GB of DDR4 memory!
    • Four x4 NVMe M.2 slots, which is fantastic! All four of these run at PCIe 4.0 speeds.
    • 2.5 Gb Ethernet port is faster than most home Internet speeds with room to spare for file transfers.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the GIGABYTE Z690 Gaming X DDR4 on Amazon (affiliate link).
  • Our recommended DDR5 motherboard to pair with the i5-12600K is GIGABYTE's Z690 AORUS PRO motherboard: GIGABYTE Z690 AORUS PRO GIGABYTE Z690 AORUS PRO Check Price on Amazon Amazon Affiliate Link

    • PCIe 5.0 support
    • It supports up to 128GB of DDR5 memory!

      DDR5 memory appears to be out of stock at most retailers, so I recommend sticking with a DDR4 motherboard or preparing for a long wait.

    • Three NVMe M.2 slots, which is excellent! These all run at PCIe 4.0 speeds.
    • 2.5 Gb Ethernet port is faster than most home Internet speeds with room to spare for file transfers.
    • USB 3.2 Gen 2x2 offers 20 Gbps USB speeds!
    • Check the latest price of the GIGABYTE Z690 AORUS PRO on Amazon (affiliate link).
Section Link

Due to the limited availability of DDR5, I'm only recommending a specific DDR4 product at this time.

However, you can check the current availability of DDR5 on Amazon (affiliate link).

  • It comes in a variety of frequencies, including 3000 MHz, 3200 MHz, 3600 MHz, 4000 MHz, and 4400 MHz
  • Reasonable CL16 timings (CAS Latency)
  • The low-profile form factor ensures that the heat spreaders don't get in the way of other devices, including your CPU heatsink
  • Crucial is a reputable brand, and I have used their memory in my machines
  • The customizable LEDs zones are a pretty cool bonus Crucial Ballistix RGB DDR4 Crucial Ballistix RGB DDR4 Check Price on Amazon Amazon Affiliate Link

Learn More About the Intel Core i7-12700T

Section Link

Other Considerations When Building a PC

Section Link

Want to brush up on other new technologies to consider when building a computer? Check out these articles:
